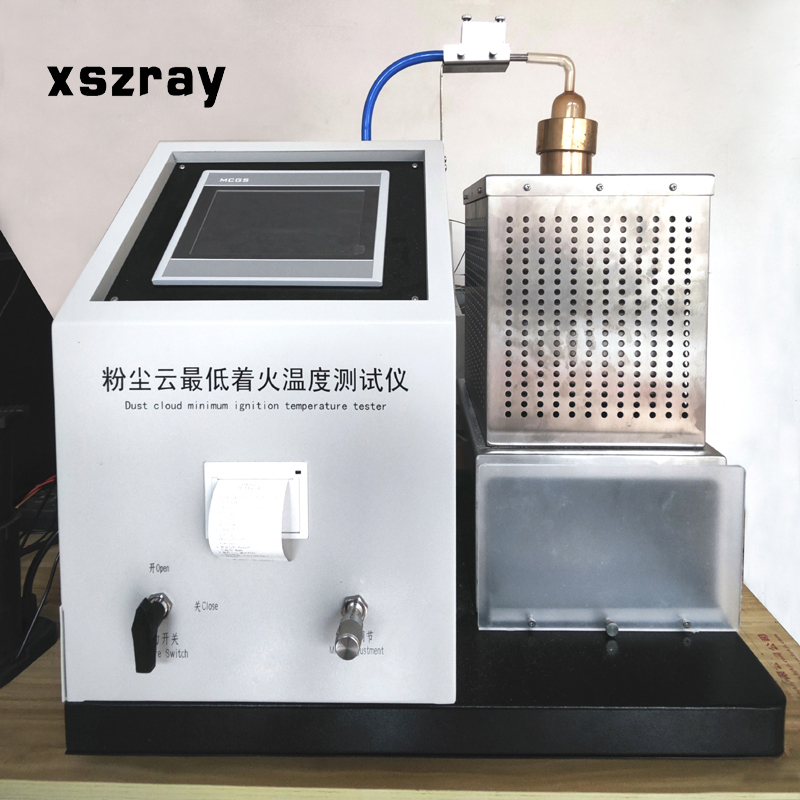

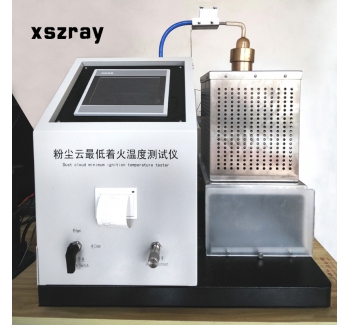

ZR-FCY-8A Dust Cloud Minimum Ignition Temperature Tester
This instrument is used to test the minimum ignition temperature of combustible dust and evaluate the potential explosion hazard of spontaneous combustion of dust clouds. A testing instrument used to test the ignition sensitivity of dust clouds in a specific heating environment.
Mainly used for dust explosion assessment in production and processing sites such as aluminum powder, zinc powder, plastic powder, intermediates of organic synthetic drugs, wheat flour, sugar, sawdust, dyes, bakelite ash, milk powder, tea powder, tobacco powder, coal dust, plant fiber dust, etc., to determine the minimum ignition temperature of dust clouds.
1、 Technical parameters:
1. Device structure: standard quartz furnace tube, quartz dust hood, and stainless steel gas storage tank;
2. Temperature control range: room temperature~1000 ℃;
3. Temperature measurement location: inside the middle of the heating furnace;
4. Temperature control location: Overall temperature control of the heating furnace, PID intelligent temperature control;
5. Dust spraying pressure: 0-100kPa, accuracy: 0.25% FS, digital display, foot pump inflation;
6. Manually adjust the manual valve to precisely adjust the filling pressure of the gas storage tank;
7. Dust spraying method: (1) manual button control;
(2) Remote control dust spraying;
8. Display: Color touch screen;
9. Power supply: 220 ± 10% VAC 50Hz ± 2Hz;
10. Power: less than 2000W;
11. Environmental temperature: 15 ℃~40 ℃
12. Environmental humidity: 30%~80% RH;
2、 Main features:
1. Wireless remote dust spraying, human-machine separation, ensuring the personal safety of operators, is a commonly used equipment for scientific research and teaching.
2. Intelligent security monitoring, sound and light alarm prompts.
3. Precise adjustment of dust spraying pressure, good experimental repeatability.
4. The cylindrical quartz explosive tube has strong resistance to explosive impact and is easy to clean and maintain.
5. Intelligent temperature control management system, automatic rapid heating and PID temperature control, precise temperature control. 6. High temperature resistant quartz furnace tube and high-temperature electric heating wire (melting point 1400 ℃) have a long service life.
7. Bottom mirror reflection for intuitive observation.
8. Data can be exported in Excel format.
9. A miniature thermal printer that can print test results.
10. Automatically identify whether there is a fire or not, without the need for human observation.
