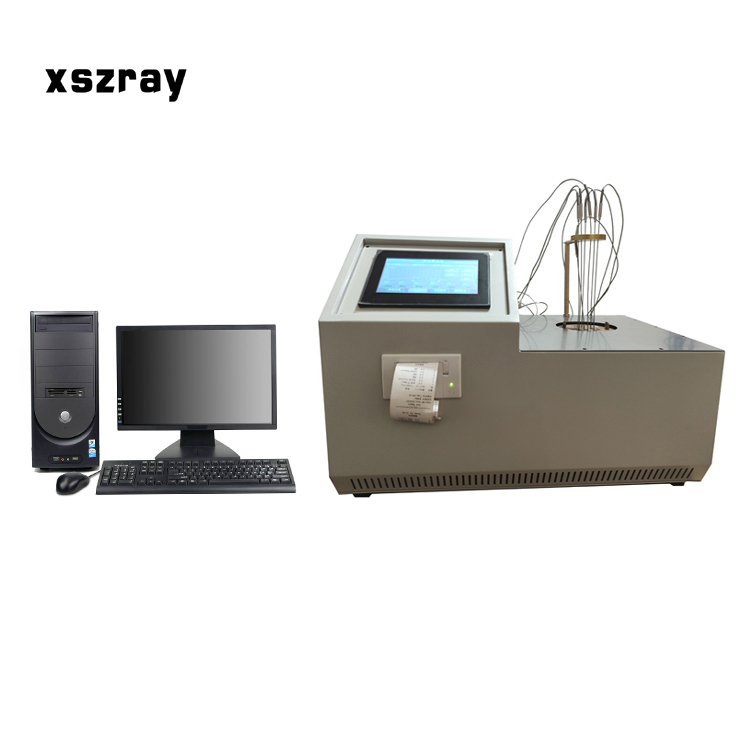

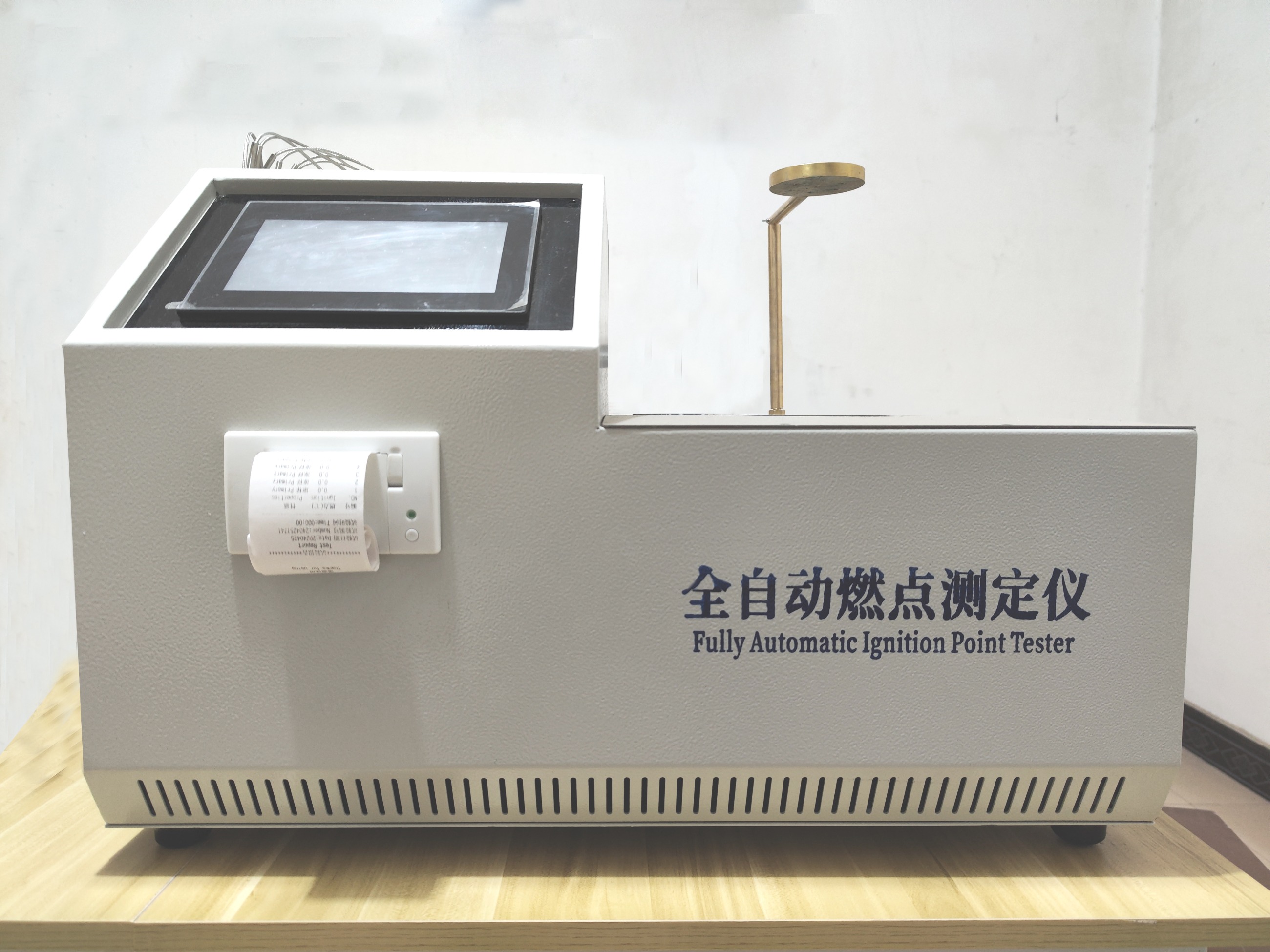

ZRRD-10A fully automatic ignition point tester

The ignition point tester is mainly used to measure the ignition temperature of test specimens. By measuring the ignition temperature of the specimen, preventive measures can be taken to avoid environmental pollution and economic losses caused by material spontaneous combustion. It plays an important role in production, research, and usage departments.

The ignition point tester refers to the requirements of the national standard GB/T18511, adopts microcomputer technology and controllable silicon technology, and adjusts the furnace temperature through power. The dual control mode can be controlled on the touch screen or on the computer. The control system automatically controls the entire measurement process, automatically raises the temperature, automatically judges the ignition temperature, and saves records and prints the measurement results. The computer communicates with the controller in both directions, displays the temperature of the heating furnace, automatically draws the temperature curve over time, and automatically captures the test results. Can print out test records and reports. Store test data during the testing process for querying.

MetInfo enterprise content manager system | MetInfo CMS

1、 Scope of application: Mainly suitable for measuring the ignition point of materials in industries such as forests, electricity, metallurgy, petrochemicals, coal geological exploration, grain, feed, etc.

2、 Functional features:

1. Dual control mode bidirectional communication on microcomputer touch screen, implementing monitoring, automatic control and display of heating furnace temperature, automatic measurement and display of sample temperature, and automatic drawing of furnace temperature variation curve over time; Automatically capture the ignition point temperature;

2. Automatically record test results, accurate and reliable;

3. Store previous test data for querying and printing, and clear historical data;

4. Customized mold shaped refractory furnace with good thermal insulation performance;

5. Meet the requirements of GB/T18511-2001;

6. Chinese and English operation interface;

7. The heating rate can be set by oneself;

8. Set the end temperature of the experiment independently;

9. With a printer, it is easy to measure the ignition point value without the need for a computer;

3、 Main performance indicators

1. Temperature control range: 0 ℃~800 ℃.

2. Temperature resolution: 0.1 ℃.

3. Heating rate: 4.5-5.0 ℃/min (adjustable rate).

4. Power consumption: ≤ 1.2kw.

5. Single measurement quantity: 6

6. Temperature measuring element: thermocouple.

7. Time range: 0-999min, resolution: 0.1min.

8. Power requirements: AC220 (+10%) V, 50HZ

MetInfo enterprise content manager system | MetInfo CMS

4、 Usage conditions

1. Environmental temperature: 0 ℃~40 ℃.

2. Relative humidity: ≤ 85%.

3. Try to stay away from strong electrical and magnetic field equipment as much as possible.

4. Power supply AC220V ± 10%, 50Hz.

5. External dimensions: length, width, height: 600mm x 400mm x 400mm

6. Overall weight: 20kg

5、 Applicable standards:

GB/T 18511; LY/T2013-2012
