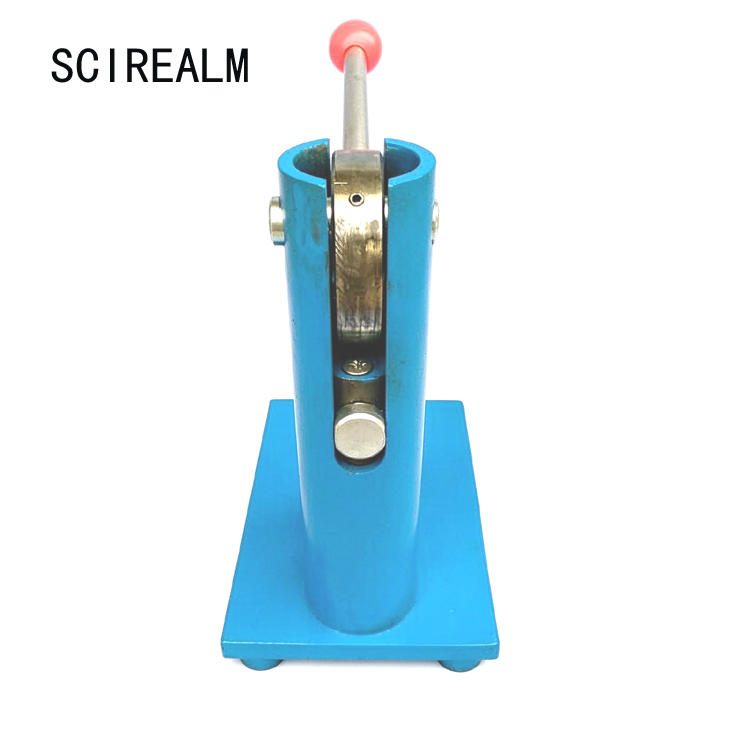

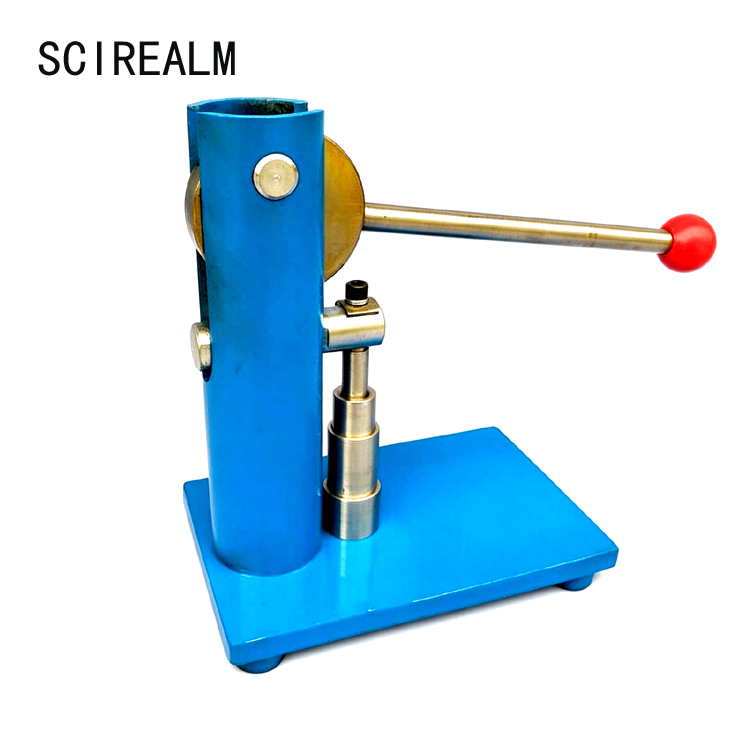

YP‑Type Manual Tablet Press

Tablet Press Prototype for Combustion Calorific Value Test Apparatus

1. Product Introduction

The manual tablet press, also known as an eccentric‑wheel tablet press, is specially designed for laboratory pressing of benzoic acid, coal samples, western medicine powders, traditional Chinese medicine powders and other materials. It delivers convenient and fast operation. It can produce tablets with diameters of 12 mm, 10 mm, 6 mm, 3 mm, etc. Featuring a well‑engineered structure and easy operation, it achieves excellent tablet forming performance. Suitable for food, pharmaceutical, chemical and other industries, it is a common laboratory device for scientific research in enterprises, institutions, colleges and universities.

- Tablet shape: Perfect circle

- Overall dimension: 185×120×220 mm

- Weight: 3 kg

*Note: Actual overall dimension and weight shall be subject to the real product.*

2. Operating Instructions

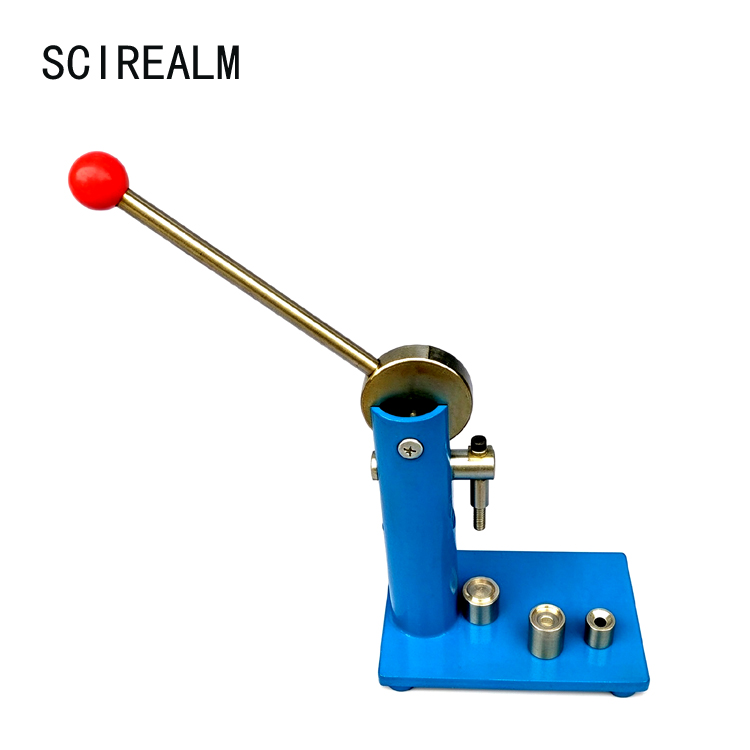

1. Lift the handle and remove the die cavity and die pad. Place the die cavity onto the die pad (flat side of die pad facing upward). Load the sample into the die cavity, set the assembly on the die support, and press down the handle.

2. Lift the handle and take out the die cavity together with the die pad. Rotate the die pad 180° (inner bore facing upward), reinstall the die cavity, place the assembly on the die support, and push down the handle to eject the sample tablet.

3. Lift the handle, remove the die cavity, and take out the finished tablet from the die pad.

4. Caution: The die cavity and die pad must be kept perpendicular to the die support.
