Oxygen Bomb Combustion Test Apparatus，Halogen Sample Pre‑treatment Ignition Controller

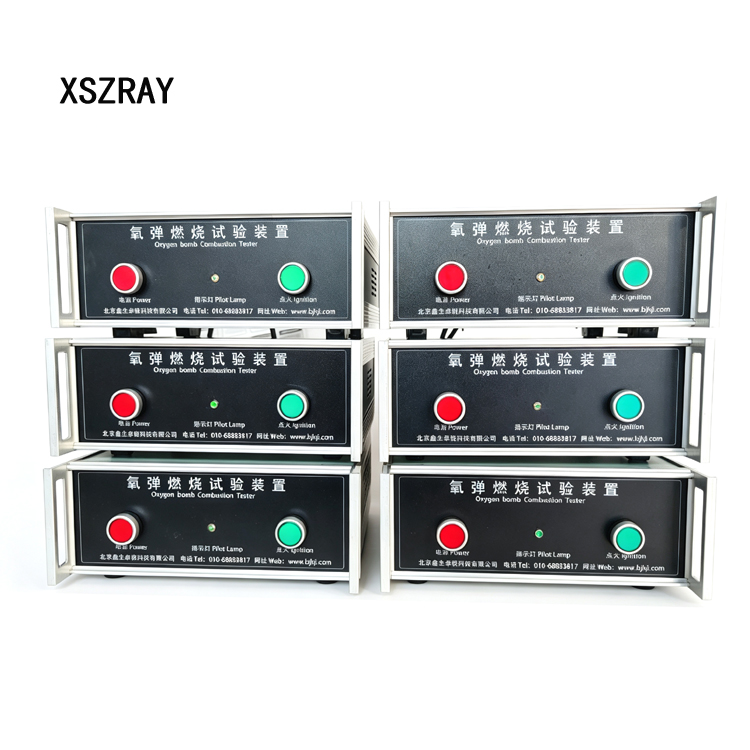

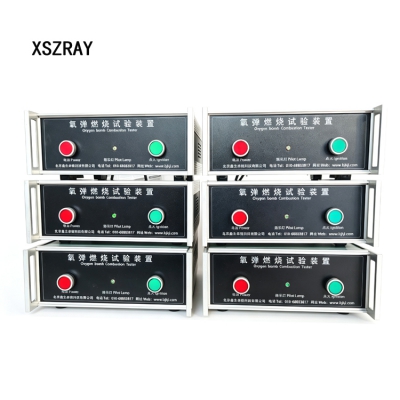

**ZR‑YDRSY Oxygen Bomb Combustion Test Apparatus**
**Scope of Application**

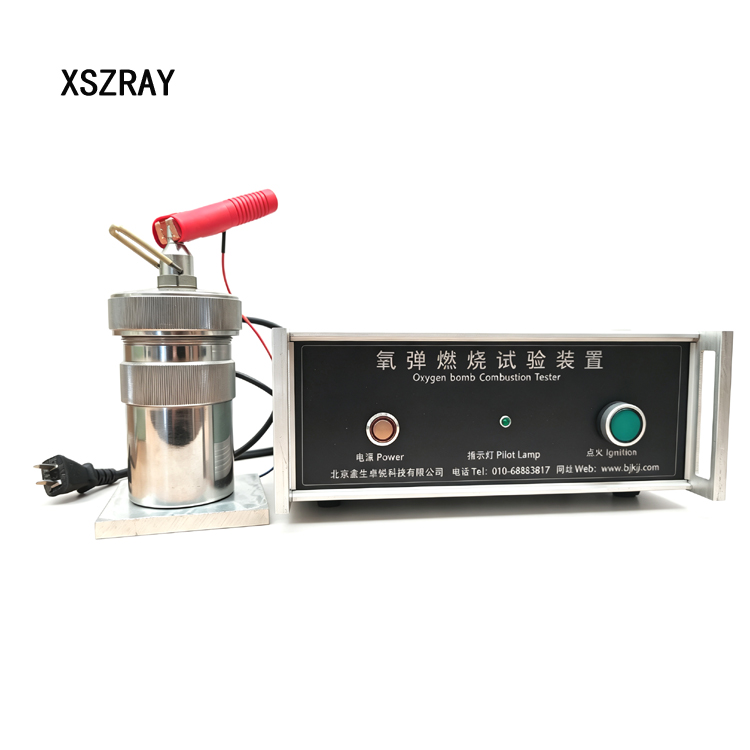

This halogen pre‑treatment system is composed of custom oxygen bomb, pressure reducer, oxygen filler and
electronic pulse igniter. Suitable for labs, universities and third‑party testing organizations. It performs sample
combustion pre‑treatment for halogen & heavy‑metal analysis on plastics, circuit boards and combustible samples.
Combusted gas is absorbed by solution for subsequent ion‑chromatography testing.
**Working Principle**
Organic samples are decomposed by combustion under high‑pressure oxygen within sealed oxygen bomb.
Halogen elements are captured by absorption liquid. The liquid can be quantified by ion chromatography,
electrode, spectrophotometry or titration.
**Technical Parameters**
‑ Power: AC220V,75W
‑ Oxygen bomb: 1Cr18Ni9Ti(321#), compliant with MTT737, pressure‑tested to 20 MPa
‑ Ignition: electronic pulse, DC12V
‑ Filling pressure: 0‑3.5 MPa (max. 20 MPa)
‑ Bomb volume: ≥200 mL

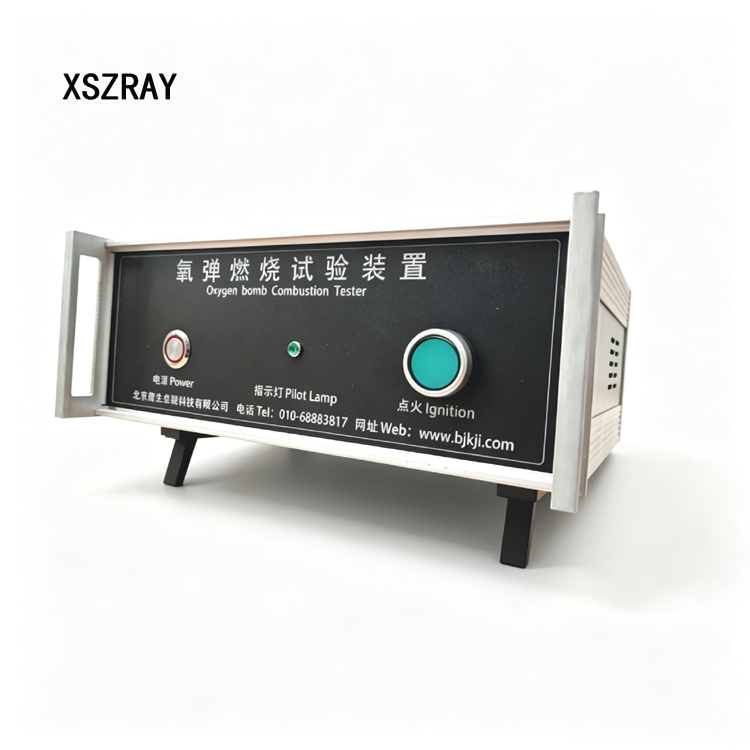

‑ Ignition controller: ignition wire status indication; lamp off means successful ignition.
**Standard Accessories**
Ignition controller, oxygen bomb, support stand, oxygen filler, pressure gauge, high‑pressure hose, ignition wire, scissors,
tweezers, syringe, fuse wire, stainless‑steel crucible, oxygen‑release valve, sealing set, Operating Instructions,
Certificate of Conformity.
